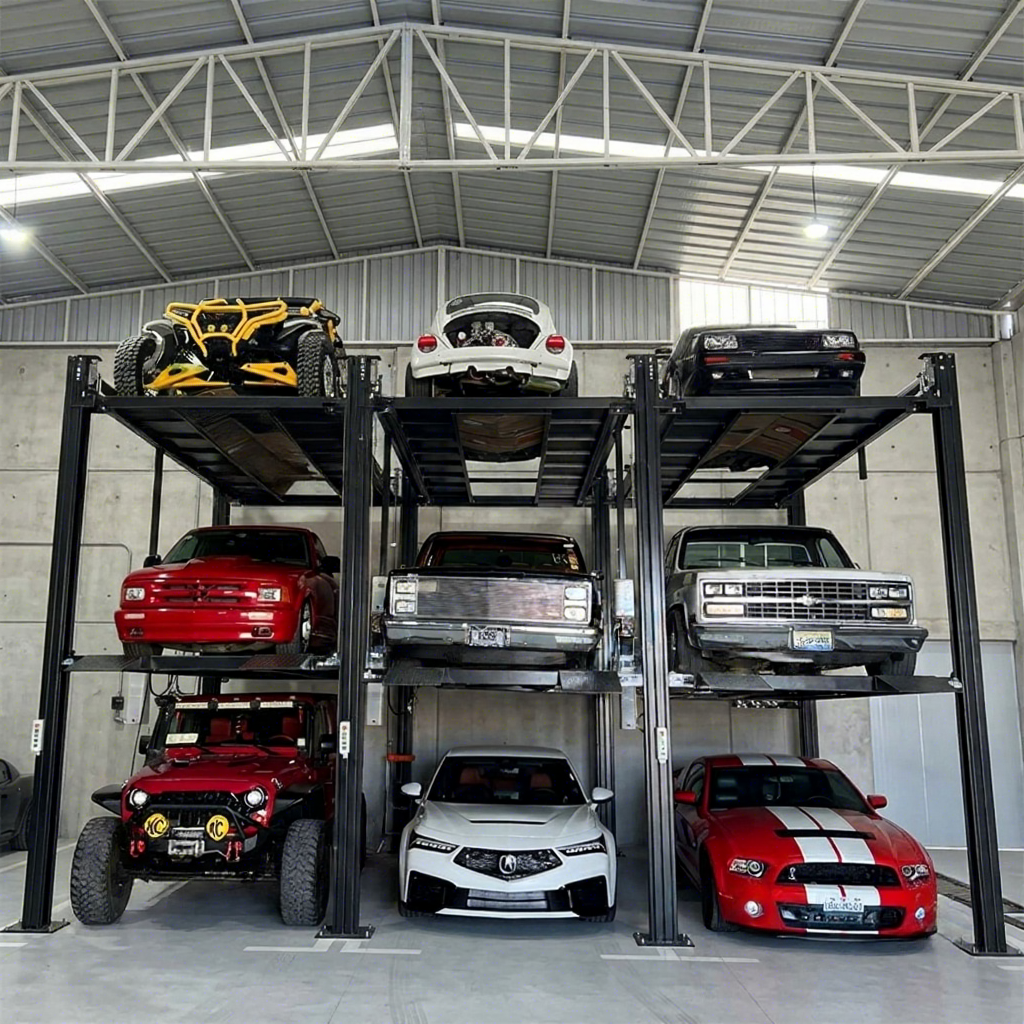

Hydraulic Triple Stacker Parking Lift for Car Storage
Feature
1. Triple-Level Vertical Storage
Stacks three vehicles in a single footprint, delivering maximum capacity without expanding your floor space.
2. 2,000 kg Per Level Load Capacity
Each platform is rated for up to 2,000 kg, providing reliable support for a wide range of vehicles including sedans and full-size SUVs.
3. Adjustable Platform Width: 1,600–1,800 mm
Flexible width settings accommodate varying vehicle dimensions, from compact cars to wider body styles.
4. Mechanical Multi-Lock Safety System
An integrated multi-point locking mechanism secures each level independently, ensuring safe and dependable stationary parking.
5. Versatile Application
Suited for residential garages, commercial parking facilities, and premium vehicle storage environments.
Specification
| CHFL4-3 NEW | Sedan | SUV |
| Lifting capacity -Upper Platform | 2000kg | |
| Lifting capacity -Lower Platform | 2500kg | |
| a Total width | 3000mm | |
| b Drive-thru clearance | 2200mm | |
| c Distance between posts | 2370mm | |
| d Outside length | 5750mm | 6200mm |
| e Height of post | 4100mm | 4900mm |
| f Maximum lifting height-Upper Platform | 3700mm | 4400mm |
| g Maximum lifting height-Lower Platform | 1600mm | 2100mm |
| h Power | 220/380V 50/60HZ 1/3Ph | |
| i Motor | 2.2 kw | |
| j Surface treatment | Powder coating or galvanizing | |
| k Car | Ground & 2nd floor SUV, 3rd floor sedan | |
| l Operation Model | Key switch, control button per floor in one control box | |
| m Safety | 4 safety lock per floor and auto protection device | |
Drawing
FAQ
Q1: Is this parking lift customized?
A: Yes. it can be customized according to your space.
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. How about your delivery time?
A: Generally, it will take 45 to 50 days after receiving your advance payment. The specific delivery time depends on the items andthe quantity of your order.
Q4.How long is the warranty period?
A:Steel structure 5 years,all spare parts 1 year.
Q5. Is the parking lift qualified by CE?
A: Yes.
Q6. What is your package?
A: steel frame package or plywood package.
