Hydraulic Four Post Car Lift Parking System

CE Certified
Fully compliant with EC Machinery Directive 2006/42/CE, meeting the highest European safety and engineering standards.

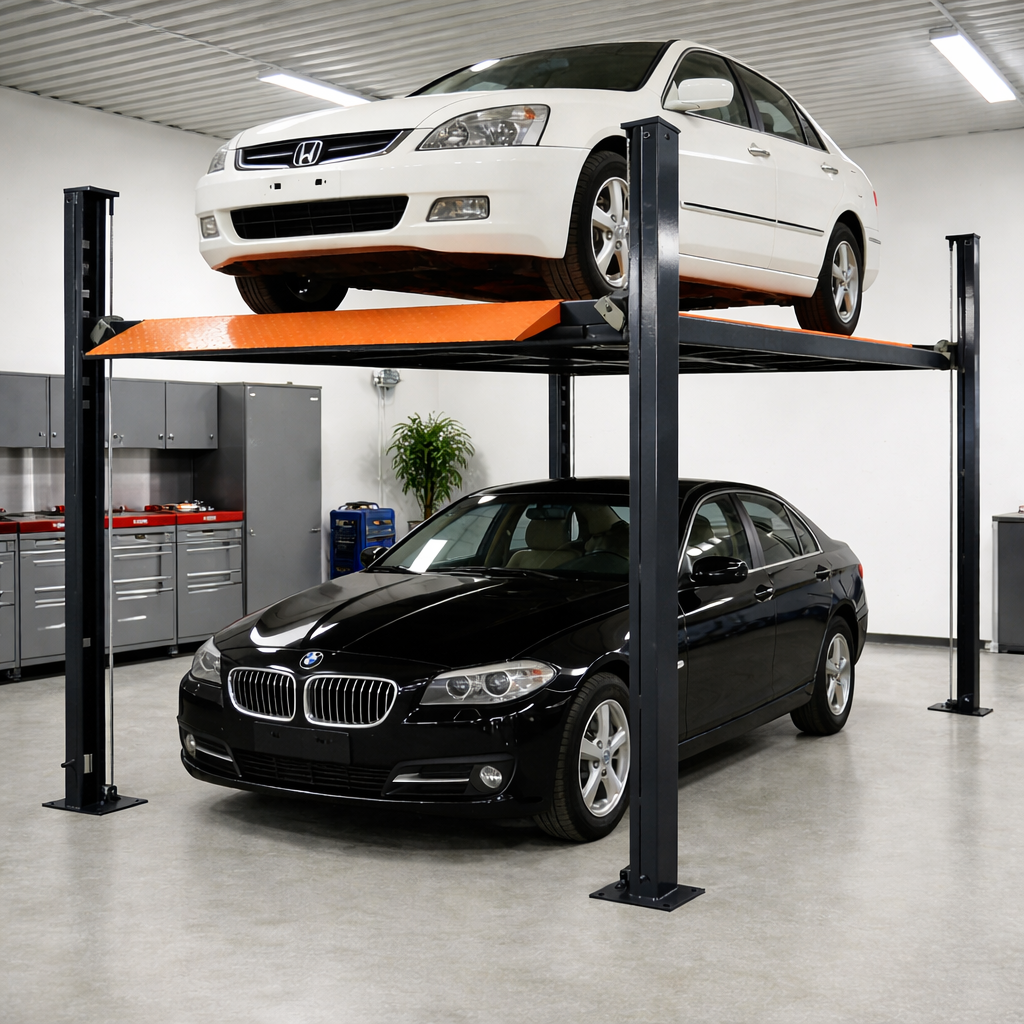

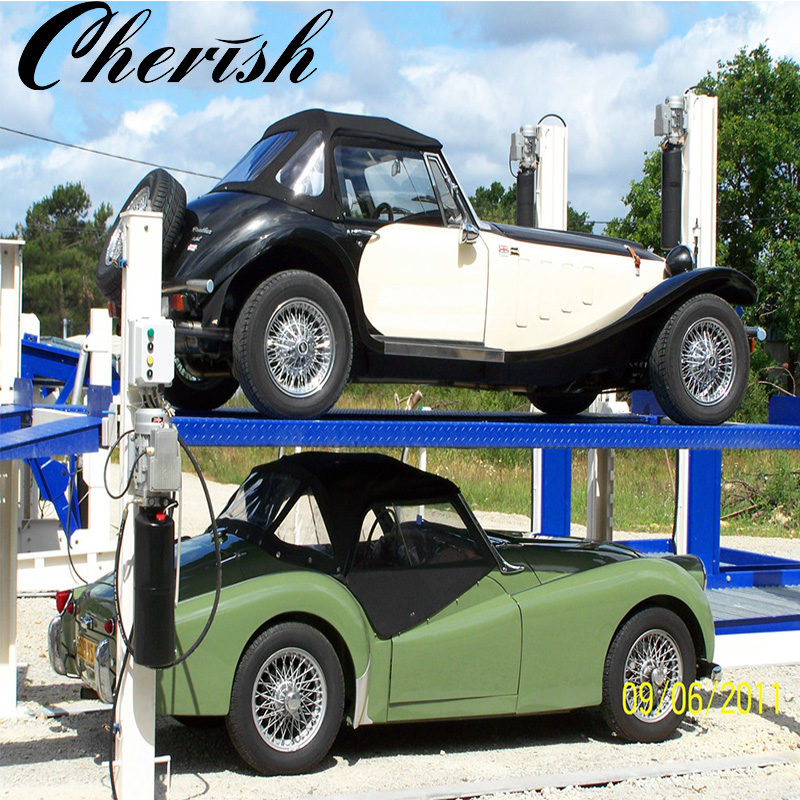

Two-Level Ground-Based Parking
A dual-level above-ground system that accommodates two vehicles per unit, efficiently doubling your available parking capacity.

Vertical-Only Movement
Operates on a pure vertical axis — ground-level space must be cleared before lowering the upper platform, ensuring straightforward and predictable operation.

3,700 kg Load Capacity
Rated for up to 3,700 kg per platform, delivering confident support for heavy-duty vehicles, SUVs, and commercial applications.

2,100 mm Usable Platform Width
A generously wide platform makes vehicle entry, positioning, and retrieval noticeably easier across a broad range of vehicle sizes.

Adjustable Platform Height
Platforms can be stopped and held at multiple height positions, adapting to different vehicle profiles and varying ceiling clearances.

High-Polymer Polyethylene Slide Blocks
Wear-resistant polymer slide blocks reduce friction and extend the operational lifespan of moving components.

Diamond Steel Plate Runways & Ramps
Platform runways and access ramps are constructed from textured diamond steel plate for superior grip and long-term structural durability.

Optional Mid-Platform Surface
Choose between a movable wave plate or diamond plate insert for the center section, offering flexibility to suit different usage preferences.

Four-Post Anti-Fall Mechanical Locks
Independent mechanical locking mechanisms on all four posts engage at multiple height intervals, providing reliable fall protection at every level.

Dual-Finish Surface Treatment
Powder spray coating is applied for indoor installations; hot-dip galvanizing is used for outdoor environments, ensuring corrosion resistance in any setting.
