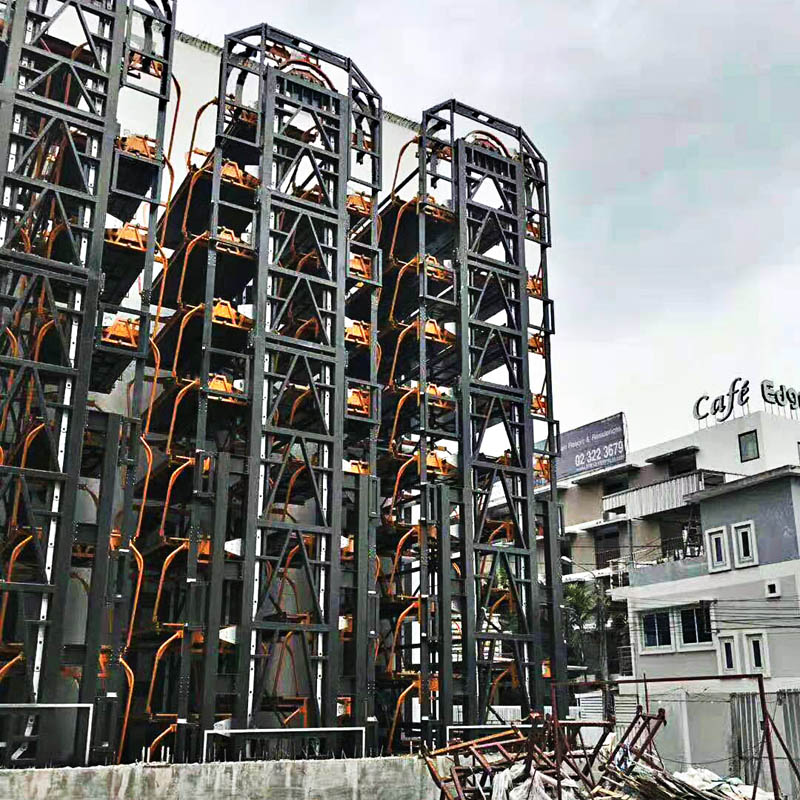

PCX Rotary Parking System
Feature
1.Suitable for all types of vehicles
2.Least cover area than other automated parking systems
3.Up to 10 times space saving than traditional parking
4.Quick time of car retrieval
5.Easy to operate
6.Modular and simpler installation, averaging 5 days per system
7.Quiet operation, low noise to neighbors
8.Car protection against dents, weather elements, corrosive agents and vandalism
9.Reduced exhaust emissions driving up & down aisles and ramps looking for a space
10.Optimal ROI and short payback period
11.Possible relocation & reinstallation
12.Wide range of applications including public areas, office buildings, hotels, hospitals, shopping malls, and car showrooms, etc.
Specification
| Products Name | mechanical parking equipment | |||||||||
| Model No. | PCX8D | PCX10D | PCX12D | PCX14D | PCX16D | PCX8DH | PCX10DH | PCX12DH | PCX14DH | |
| Type of mechanical parking | Vertical Rotary | |||||||||
| Dimension(mm) | Length(mm) | 6500 | 6500 | 6500 | 6500 | 6500 | 6500 | 6500 | 6500 | 6500 |
| Width(mm) | 5200 | 5200 | 5200 | 5200 | 5200 | 5400 | 5400 | 5400 | 5400 | |
| Height(mm) | 9920 | 11760 | 13600 | 15440 | 17280 | 12100 | 14400 | 16700 | 19000 | |
| Parking Capacity (cars) | 8 | 10 | 12 | 14 | 16 | 8 | 10 | 12 | 14 | |
|
Available car |
Length(mm) | 5300 | 5300 | 5300 | 5300 | 5300 | 5300 | 5300 | 5300 | 5300 |
| Width(mm) | 1850 | 1850 | 1850 | 1850 | 1850 | 1950 | 1950 | 1950 | 1950 | |
| Height(mm) | 1550 | 1550 | 1550 | 1550 | 1550 | 2000 | 2000 | 2000 | 2000 | |
| Weight(kgf) | 1800 | 1800 | 1800 | 1800 | 1800 | 2500 | 2500 | 2500 | 2500 | |
| Motor(kw) | 7.5 | 7.5 | 9.2 | 11 | 15 | 7.5 | 9.2 | 15 | 18 | |
| Operation type | Button+ Card | |||||||||
| Noise level | Š50bd | |||||||||
| Available temperature | -40 degree-+40 degree | |||||||||
| Relative humidity | 70% (No obvious water droplets) | |||||||||
| Protection | IP55 | |||||||||
| Three-phase five wire 380V 50HZ | ||||||||||
| Parking manner | Forward parking & Reverse retrieving | |||||||||
|
Safety factor |
lifting system | |||||||||
| steel structure | ||||||||||
| Control mode | PLC control | |||||||||
| Running Control mode | Double system Power frequency and frequency conversion | |||||||||
| Drive mode | Motor + reducer + chain | |||||||||
| CE certificate | Certificate number:M.2016.201.Y1710 | |||||||||
Drawing
FAQ
Q1: You are factory or a trader?
A: We are manufacturer , we have own factory and engineer .
Q2. What is your terms of payment?
A: T/T 50% as deposit, and 50% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF.
Q4. How about your delivery time?
A: Generally, it will take 45 to 50 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q7.How long is the warranty period?
A:Steel structure 5 years,all spare parts 1 year.
