2-6 Level Smart Car Parking System Puzzle Sliding Platform

Short Description:

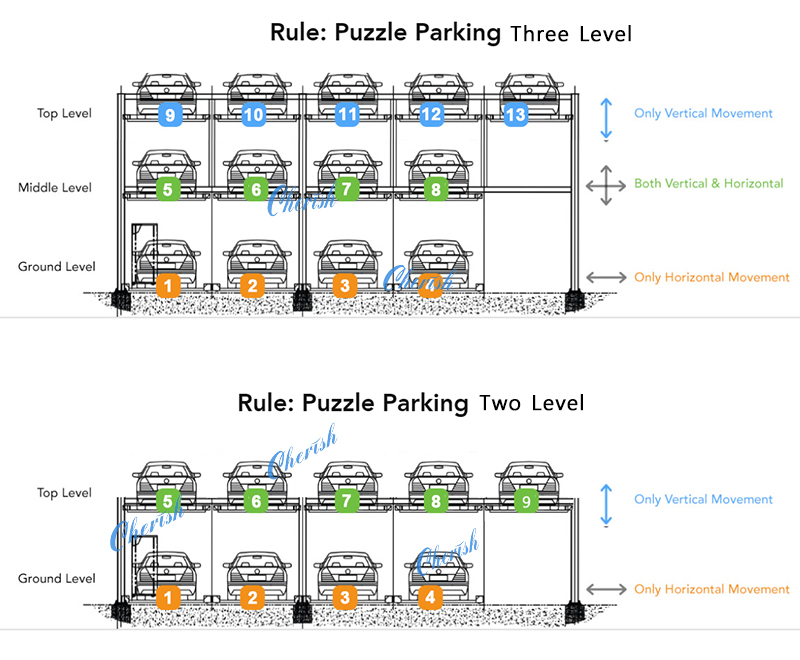

The system operates through a combination of lifting and sliding actions of the car loading plate to enable vehicle access. Each parking space features a movable plate that can lift, lower, and slide to bring the vehicle to the ground level, making it easy for the driver to park or retrieve their car. The top and underground levels are fully utilized and only require vertical movement (lifting or lowering) for access. In contrast, the intermediate levels need at least one empty spot to facilitate both sliding and lifting functions. The ground floor, however, only involves sliding movement. To operate the system, the driver simply inserts a card or presses a button, after which the automated control system manages the entire process.

Send email to us

Product Detail

Product Tags

Feature

1. The system structure is very flexible and can be arranged according to your site condition and requirements.
2. Save land area and take full use of space,the parking quantity is about 5 times compared with normal plane parking lot.
3. Low equipment cost and maintenance cost.
4. Lift smoothly and with low noise,convenient for car to go in or out.
5. Comprehensive security protection system,such as safety anti-falling hook, mechanism detect people or car entering, car parking limit mechanism, interlock mechanism, emergency brake mechanism.
6. Adopt PLC automatic control system, use button, IC card and remote control system, make Operation very easy.

Specification

Product Parameters
Model No.		no.1	no.2	no.3
Vehicle Size	L:	≤ 5000	≤ 5000	≤ 5250
	W:	≤ 1850	≤ 1850	≤ 2050
	H:	≤ 1550	≤ 1800	≤ 1950
Drive Mode		Motor Driven + Roller Chain
Lifting Motor Capacity / Speed		2.2Kw 8M/Min (2/3 levels); 3.7Kw 2.6M/Min (4/5/6 levels)
Sliding Motor Capacity / Speed		0.2Kw 8M/Min
Loading Capacity		2000 kg	2500 kg	3000 kg
Operation Mode		Keyboard / ID Card / Manual
Safety Lock		Safety lock device by electromagnetism and fall protection device
Power Supply		220V / 380V, 50Hz / 60Hz, 1Ph / 3Ph, 2.2Kw

Drawing

Why choose us

1. Professional car parking lift Manufacturer, More than 10 years experience. We are committed to manufacturing, innovating, customizing and installing various car parking equipment.

2. 16000+ parking experience, 100+ countries and regions

3. Product Features: Using high quality raw material to ensure the quality

4. Good Quality: TUV, CE certified. Strictly inspecting every procedure. Professional QC team to ensure the quality.

5. Service: Professional technical support during pre-sale and after sale customized service.

6. Factory: It located in Qingdao, east coast of China, Transportation is very convenient. Daily capacity 500 sets.
