Hydarulic Disable Patient Lift 4m Disabled Lift Platform
Feature
1. It is equipped with an anti-fall system. When a failure occurs, the lift will be locked and will not drop rapidly.
2. The anti-fall guardrail platform of small electric cargo lift ladder is equipped with guardrails, which can increase the number of lifted goods and prevent them from falling.
3. High-efficiency motor, low energy consumption and low failure rate, which can greatly improve work efficiency.
Specification
|
Model No. |
CSL-3 |
|
Lifting Capacity |
300kg |
|
Voltage |
220-480v |
|
Lifting Height |
6000mm |
|
Platform Size |
1400*900mm |
|
Drive System |
Hydraulic |
|
Material of Platform |
Steel or stainless steel |
|
Working Condition |
Both indoors and outdoors |
|
Control Device |
Calling column (installed beside lift) and remote controller(optional configuration) |
|
Emergency Stop |
The lifting and lowering process can be stopped immediately by pressing the emergency stop button. |
|
Safety device |
Safety Interlock: Lock the platform when it is out of control.
|
|
Installation |
Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) |

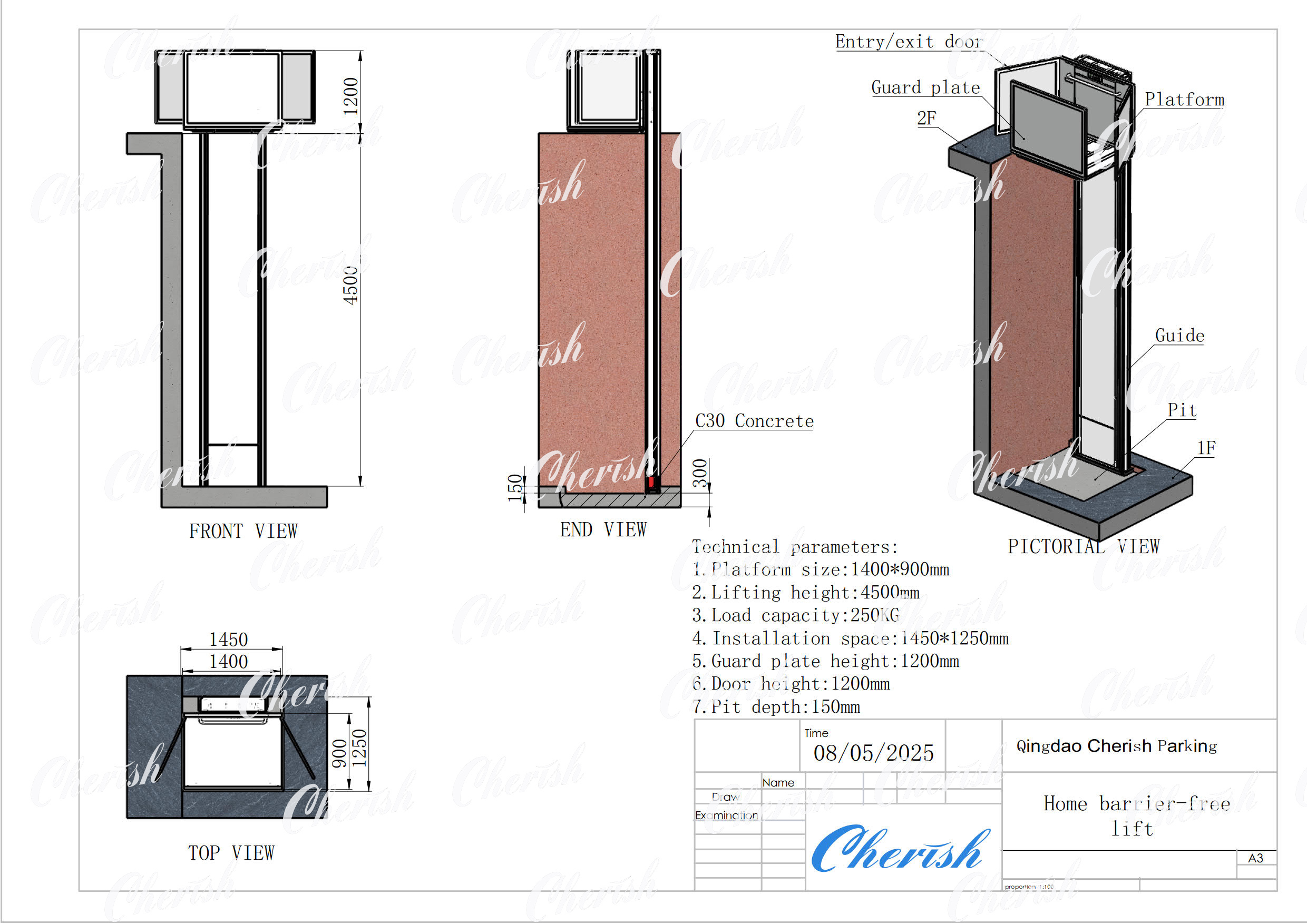

Drawing
FAQ
1.How can I order it?
Please offer your land area, quantity of cars, and other information, our engineer can design a plan according to your land.
2.How long can I get it?
About 45 workdays after we receive your advance payment.
3.What is payment item?
T/T, LC....
